Semi Automatic A2 Book Cover Carton Thermal Film Laminator with Double-sided Laminating UV Dryer and Hot Knife

1ชุด
MOQ
สามารถต่อรองได้
ราคา
Semi Automatic A2 Book Cover Carton Thermal Film Laminator with Double-sided Laminating UV Dryer and Hot Knife
คุณสมบัติ คลังภาพ รายละเอียดสินค้า ขออ้าง
คุณสมบัติ
ข้อมูลจำเพาะ
น้ำหนักสุทธิ: 4000กก
Max.ขนาดกระดาษ: (ย)760×(ก)590
นาที. ขนาดแผ่น: (ย)200×(ก)240
ขนาดเครื่อง: (ย)550×(ก)130×(ส)180(ซม.)
ความเร็วของเครื่องจักร: 0~80m/นาที
อุณหภูมิเคลือบ: 80-110 ℃
ข้อมูลพื้นฐาน
สถานที่กำเนิด: จีน
ชื่อแบรนด์: ECOOGRAPHIX
ได้รับการรับรอง: CE,SGS
หมายเลขรุ่น: YFMB750
การชำระเงิน
รายละเอียดการบรรจุ: บรรจุส่งออกมาตรฐาน
เวลาการส่งมอบ: 30 วัน
เงื่อนไขการชำระเงิน: แอล/C,ที/ที
สามารถในการผลิต: 500 ชุด
รายละเอียดสินค้า
Semi Automatic A2 Book Cover Carton Thermal Film Laminator
Product Overview

The YFMB 750 is a semi-automatic precoating hot laminating machine that utilizes pre-coated film (BOPP/PET with adhesive) for both hot (heated rollers) and cold (pressure only) lamination processes.

Applications

This professional laminating equipment is designed for plastic film application on paper printed materials, widely used in:

  • Packaging materials
  • Paper boxes and cartons
  • Books, magazines, and calendars
  • Handbags and gift boxes
  • Wine packaging paper

Enhances print material quality while providing dust-proof, water-proof, and oil-proof protection. Suitable for printing and laminating enterprises of all scales.

Compatible Films: OPP, PET, PVC, METALLIC, and other precoated or thermal laminating films.

Main Features
  • Double-sided laminating (optional - both sides laminated simultaneously)
  • Dust removal system with surface preheating for enhanced brightness and fit
  • UV dryer for strong fastness, especially for embossing applications (optional)
  • Chain knife for cutting tailless and high-toughness films like PET and aluminum foil (optional)
  • Hot knife for high-speed slitting of tough films (optional)
  • Corona device for improved ink adhesion on laminated surfaces (optional)
  • Static elimination device for paper adhesion control (optional)
  • Embossing system for decorative surface aesthetics (optional)
Technical Specifications
Model YFMB-750
Max. Sheet (W x L) 590 × 760 mm
Min. Sheet (W x L) 200 × 240 mm
Machine Speed 0-80 m/min (one side)
Paper Thickness 100-450 g/m²
Voltage 380V
Paper Feed Height 680 mm
Paper Stack Height 650 mm
Laminating Temperature 80-110 ℃
Power Required 18 kW
Dimensions (L × W × H) 5500 × 1300 × 1800 mm
Net Weight 4000 kg

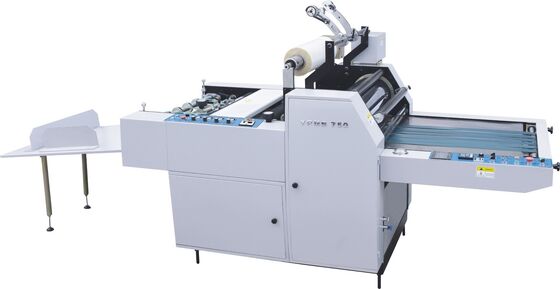

Semi Automatic A2 Book Cover Carton Thermal Film Laminator YFMB-750
